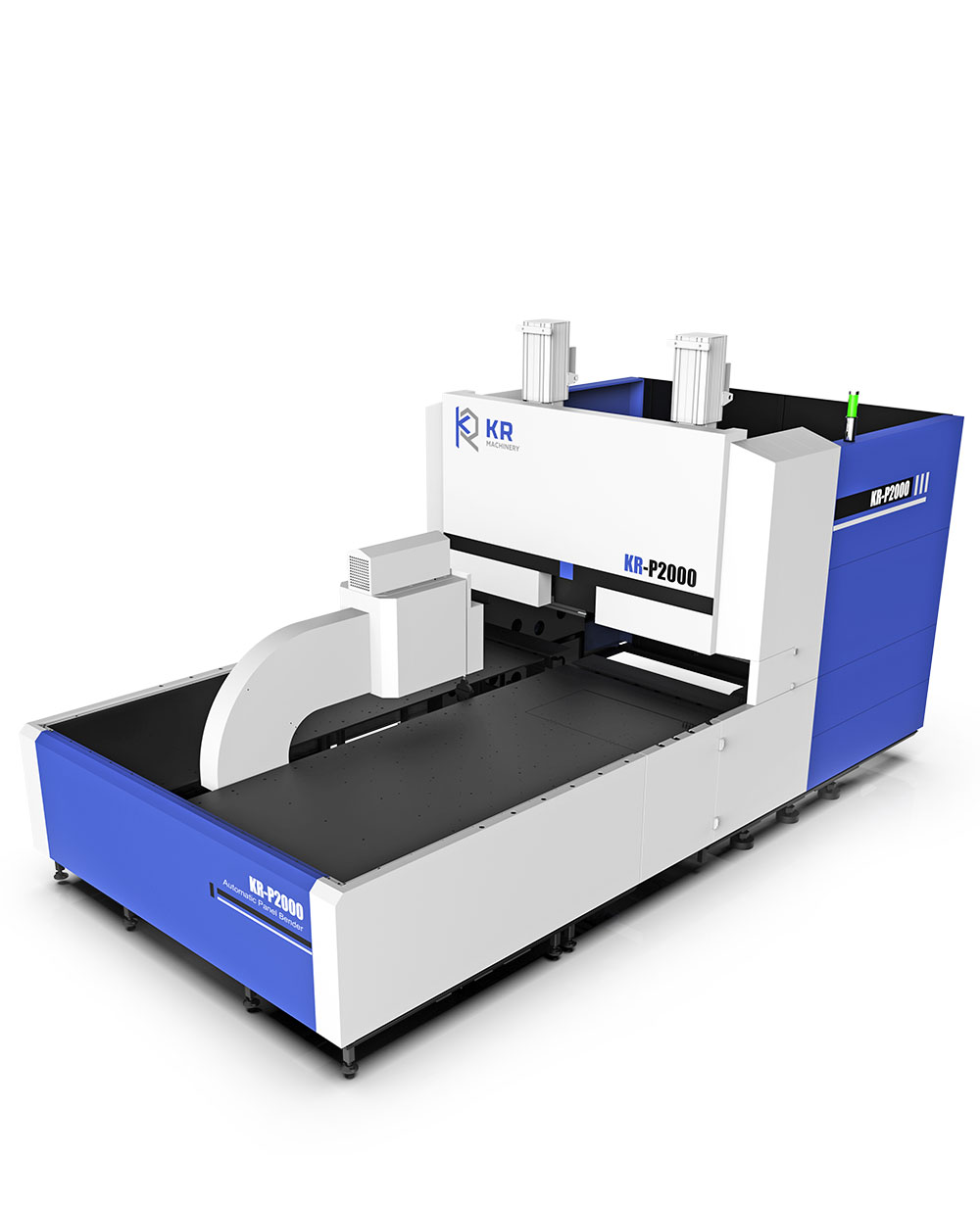

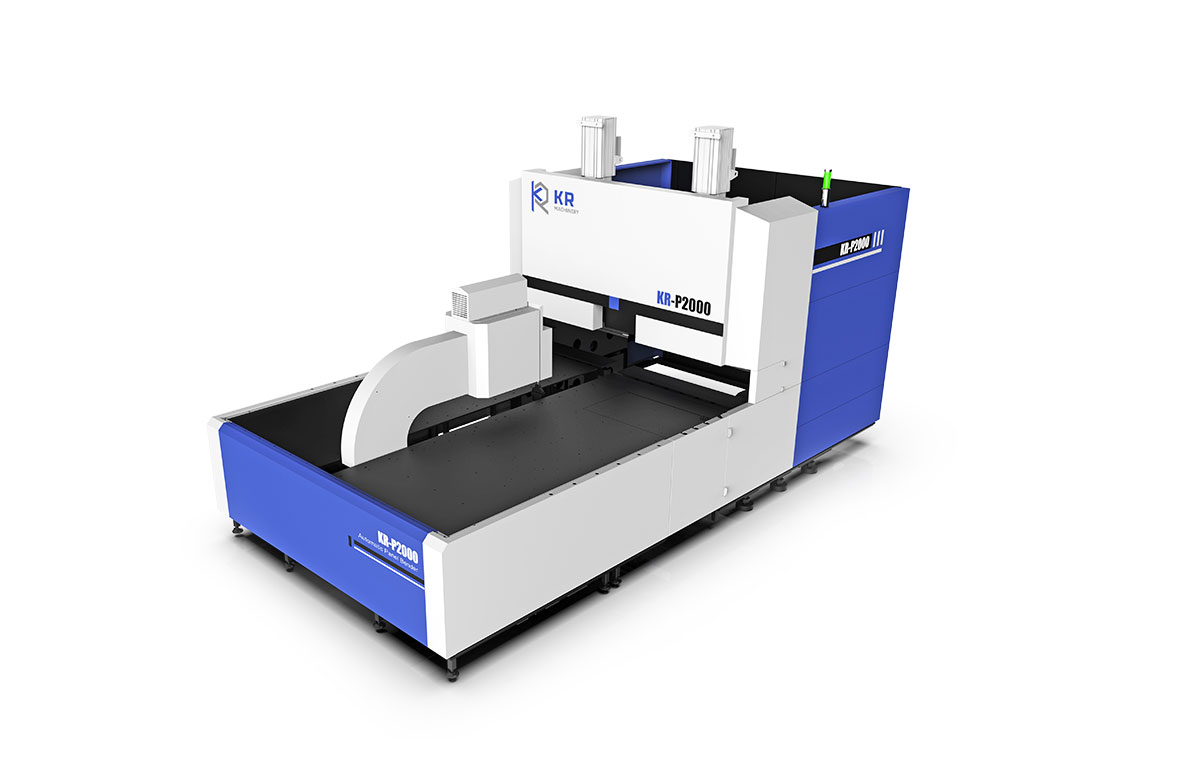

Automatic panel bender is a high-tech product that aims to improve production efficiency, reduce labor cost, improve the automation level of production line
Industry 4.0 architecture, rapid bending, low power consumption, easy to maintenance and operate.
Industry 4.0 Architecture
High-standard iron casting bed
Professional controller supporting 15/16 Axis
Ordinary labor without mechanical knowledge can operate the machine
Modular design, easy to maintain

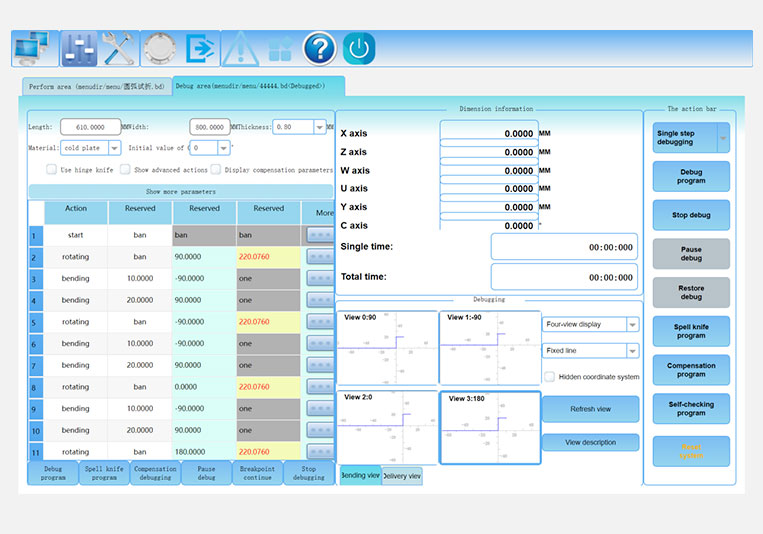

Professional Panel Bender control system, realize true 15-axis concurrent linkage, response quickly and smoothly. The function and stability has been proved by more than 1000 users

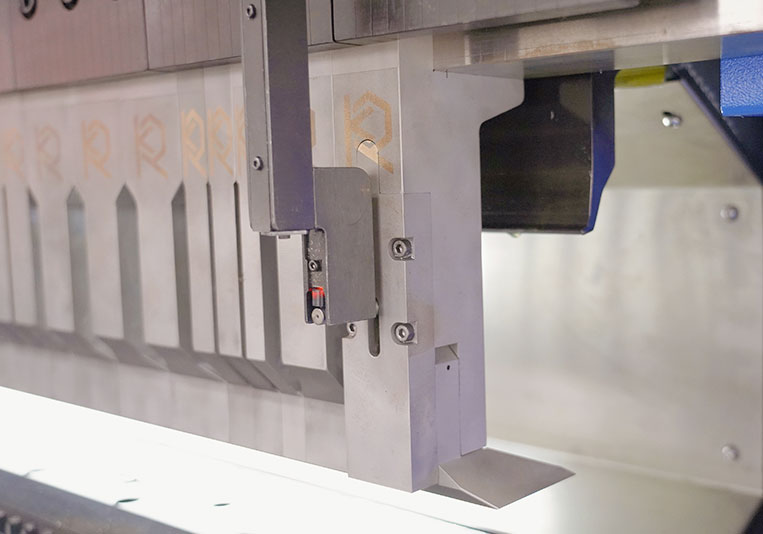

Servo controlled hinge tool, avoid material deformation, precision loss, side shovel force and scratches

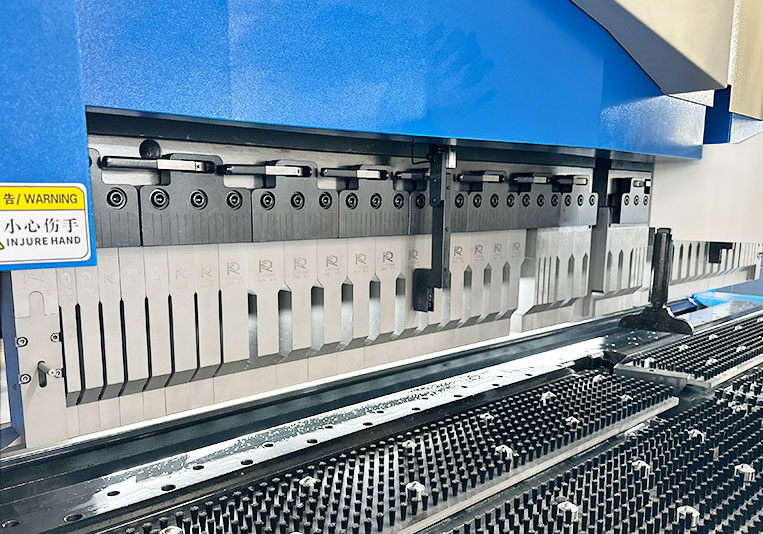

Brand new designed upper pressure tools with special material, enhanced hardness, accuracy consistency and stability
Upper pressure tools with the function of quick release and installation, easier and faster to change the tools
| Model | P1500A | P2000A | P2500A |
|---|---|---|---|
| Number of axis | 23 | 25 | 25 |
| Maximum bending speed | 0.2S/TIME | ||
| Maximum bending width | 1500MM | 2000MM | 2500MM |
| Maximum bending size( L*W ) | 1500MM*1300MM | 2000MM*1300MM | 2500MM*1300MM |
| Bending height | 170MM | ||
| The rated voltage | 380V | ||
| Machine weight | 10 Tons | 20 Tons | 25Tons |
| Minimum size of four-side bending | 180*370mm | 180*370mm | 200*370mm |
| Noise | ≈50db | ||
| Machine dimension | 4800mm*2100mm*2850mm | 5550mm*3050mm*3100mm | 5750mm*3200mm*3400mm |
