Introduction

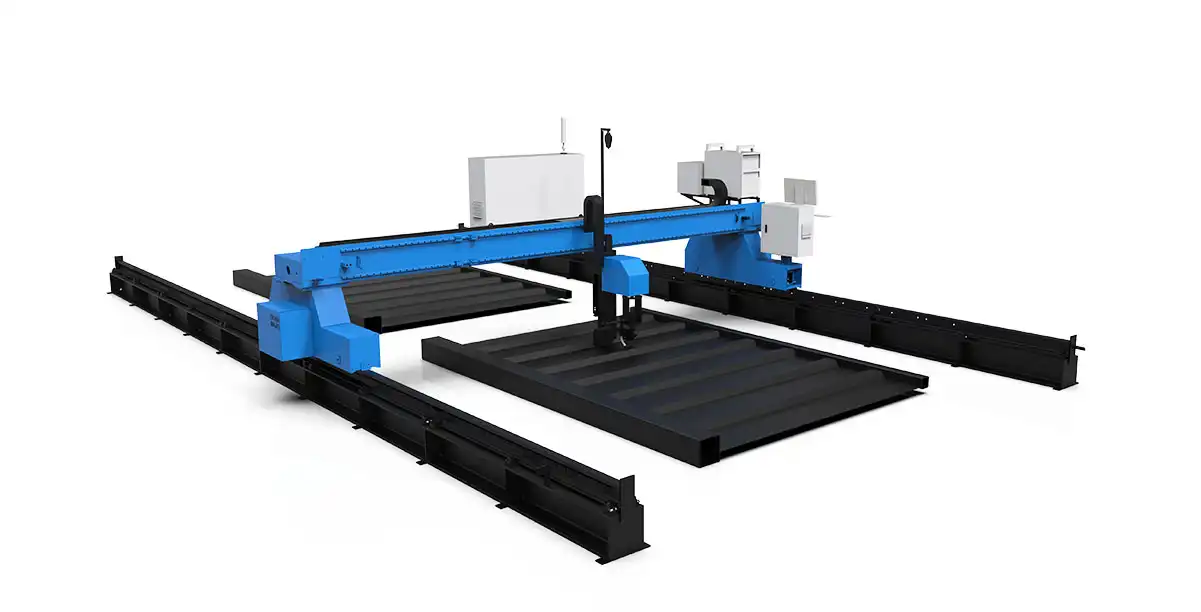

Visual gantry type welding system can be compatible with both traditional welding and laser welding, it integrates welding source(or laser source),welding gun, wire feeder,welding controller,gantry machine body, camera, picture ayalysis system,fixtures and central management system. Based on powful picture ayalysis system and central management system, the robot welding machine can design the welding routine by itself and weld automatically without teaching.

Advantage

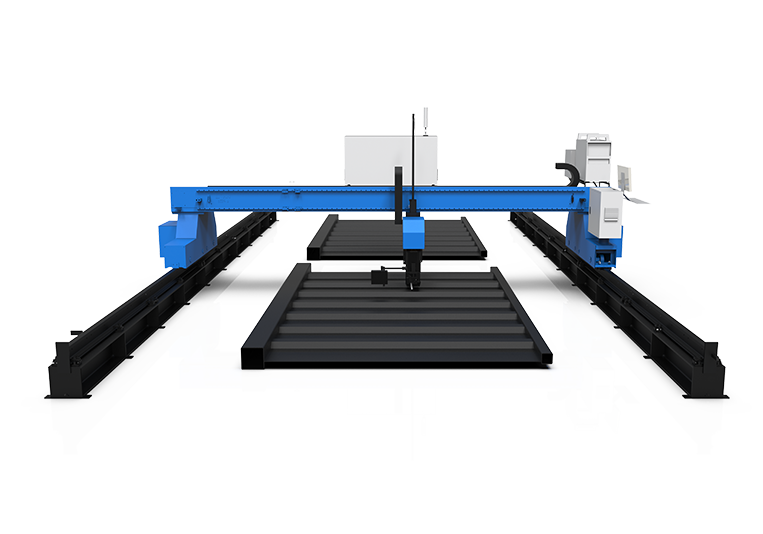

Be compatible with both traditional welding and laser welding;

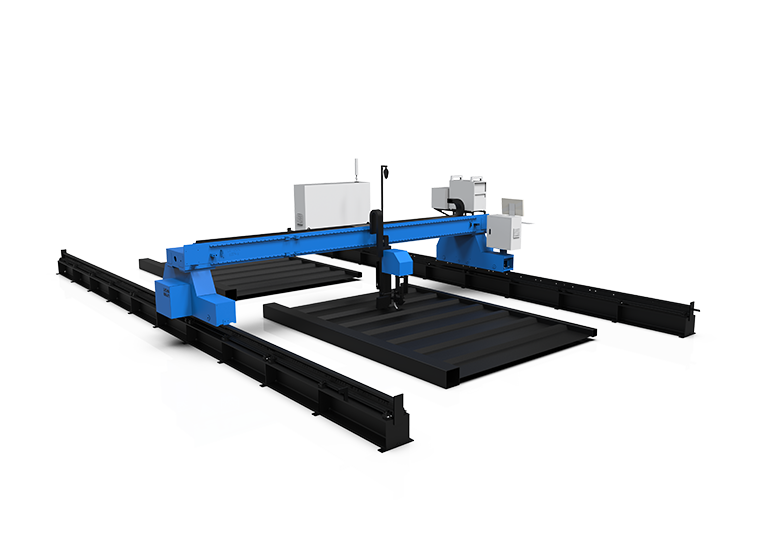

Customized fixtures

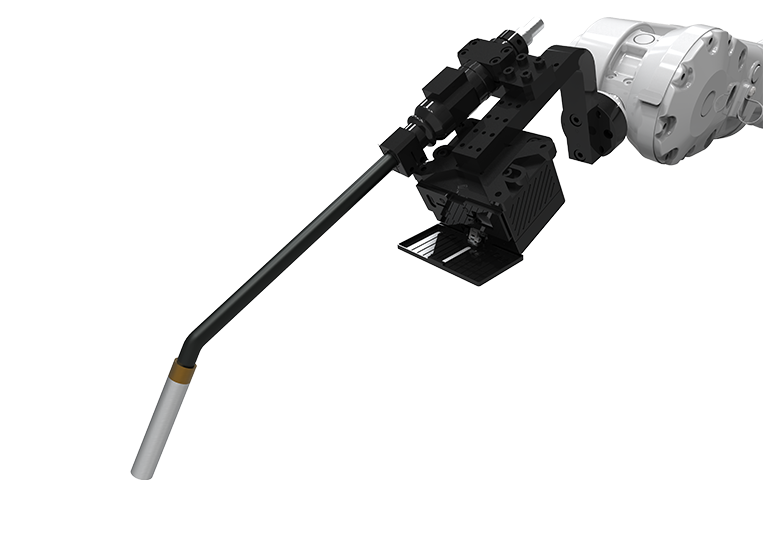

Adcanced image capture and analysis system;

Automatic welding routine design system;

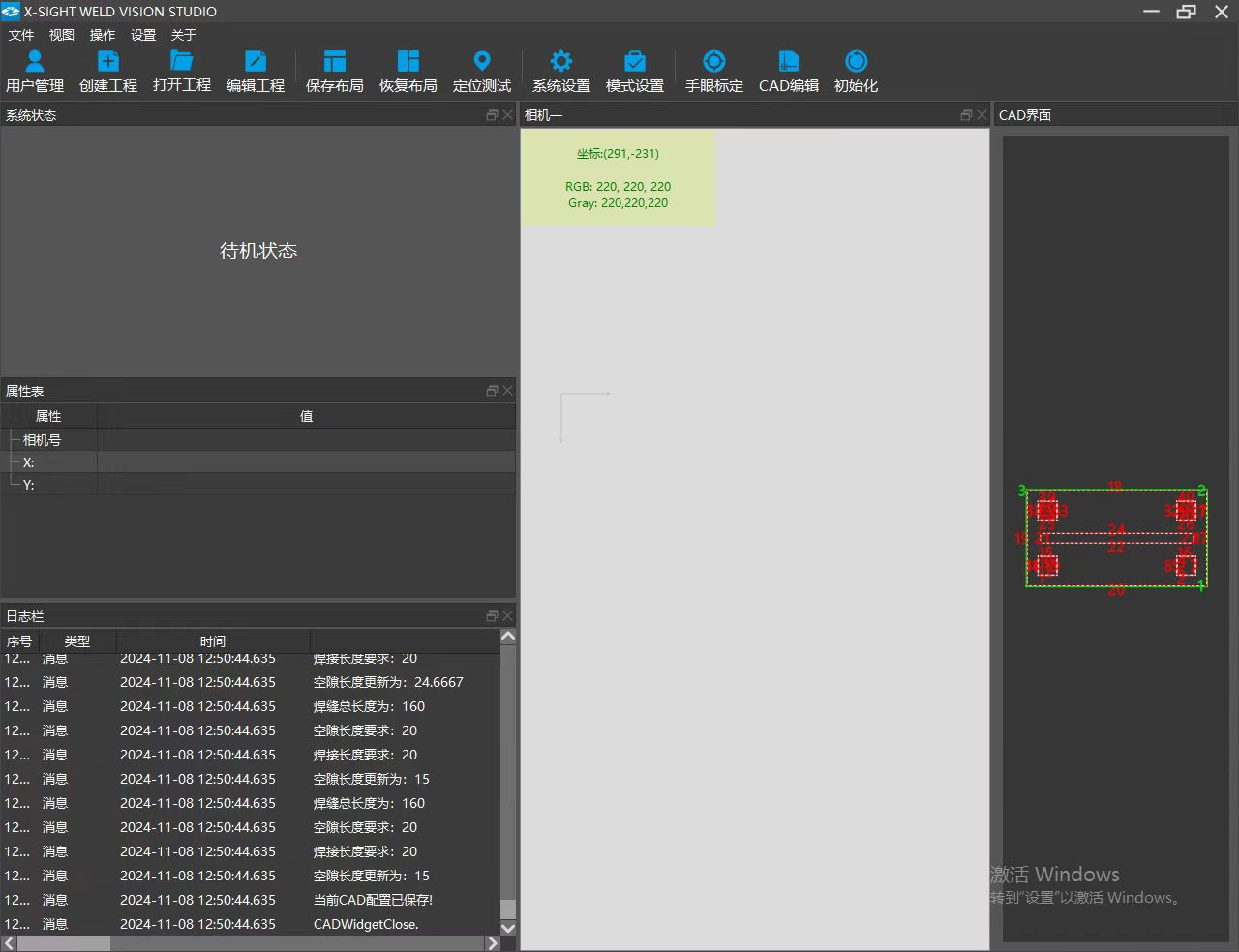

Self developed Central control system, robot welding without teaching.

Technical parameter

Model KW2100
Maximum welding size 2100*900mm
Maximum welding height 60mm
Maximum thickness of sheet metal 3mm
X axis stroke 2100mm
Y axis stroke 900mm
Z axis stroke 400mm
Welding power 1500w
Total power 15kw
Machine dimension 4270*3150*2620mm
Positioning accuracy ≤±0.05mm
Maximum speed 80m/min
Maximum acceleration 1.2G
